[In Stock] Lelelab Matra Alice 90 Retro Mechanical Keyboard Kit

Lelelab Matra Alice 90 Retro Mechanical Keyboard Kit

by Lelelab

The Lelelab Matra Alice 90 Retro Mechanical Keyboard Kit is a modern replica of the eye catching Matra Alice 90 keyboard by Matra & Hachette.

Lelelab's iteration brings in a gasket mount plate and several sound dampening measures to make sure it does not only look great but sounds great. On top of the modern refining, Lelelab also introduces a Type-C bridging PCB hub bringing compatibility for most USB-C connection GH-60 PCBs if you want to use your own pre-built 60% PCB.

• For more files and resources, visit Lelelab official Discord

Features

• Retro aesthetics

• GH60 PCB compatible

• approximately 2.85KG unassembled
• gasket mount

• bridging USB-C hub
• Powder Coated Kahki or Red / Glossy Lacquer Red
• Brass badges
• 7°
• Front height: 16.20mm (excluding feet)

Content

Kit includes:

• Top cover: 6061 aluminum
• Bottom cover: 6061 aluminum
• Top badge: H62 brass
• Bottom badge: H62 brass
• Plate: FR4, red
• 10 x Case screws: stainless steel, M2*9mm 1.5mm hex
• 5 x Badge screws: stainless steel, M2*5mm 1.5mm hex
• Plate Poron sheet
• Bottom case Poron sheet
• 12 x Gasket silicone pad

• Silicone feet x 4
• Included: Core PCB: USB-C, FR4, hot-swappable, RGB lighting, supports QMK/VIA
• Bridging PCB module: FR4
• Cable: Type-C/USB-A.

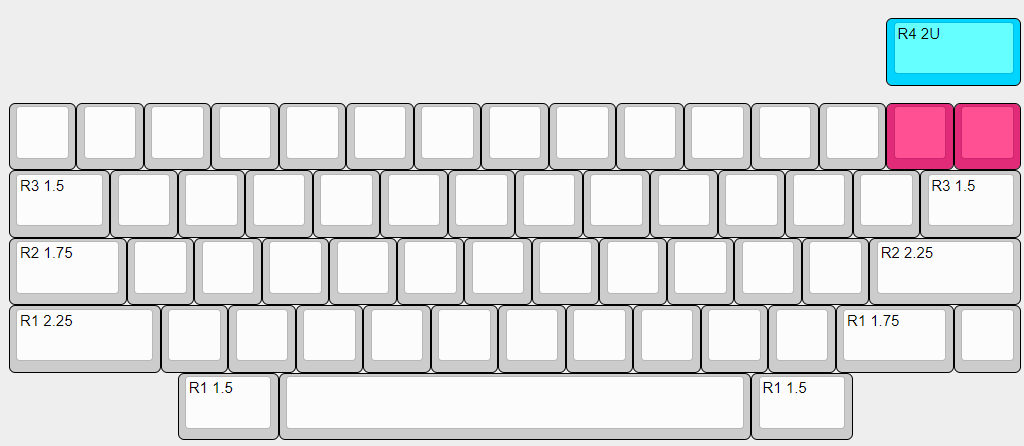

Plate Layout Support
